MAX1297ACEG

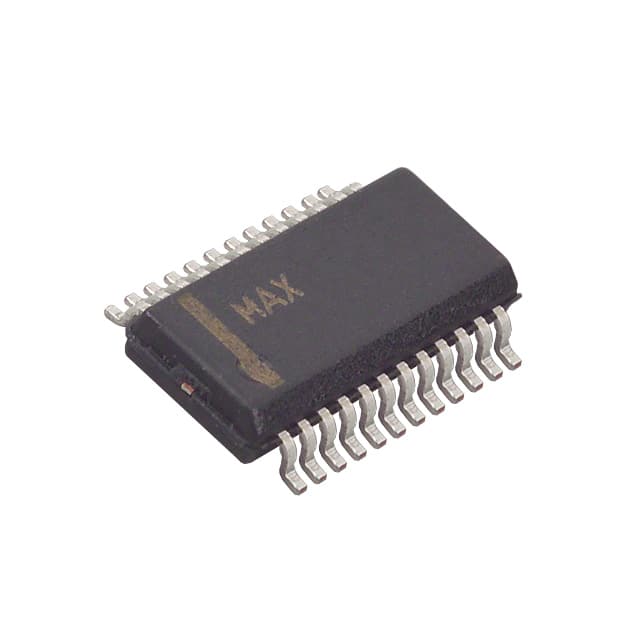

IC ADC 12BIT SAR 24QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. MAX1297ACEG is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single 1-channel multiplexer with sample-and-hold circuitry, enabling both pseudo-differential and single-ended input types. The MAX1297ACEG offers a sampling rate of up to 265kSPS and supports both external and internal reference voltage configurations. Its parallel data interface simplifies integration into existing designs. Packaged in a 24-QSOP (0.154", 3.90mm width) for surface mounting, this device operates across an analog and digital supply voltage range of 2.7V to 3.6V and is suitable for operation within a temperature range of 0°C to 70°C. This ADC finds application in various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 265k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 1, 2 |
| Supplier Device Package | 24-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
