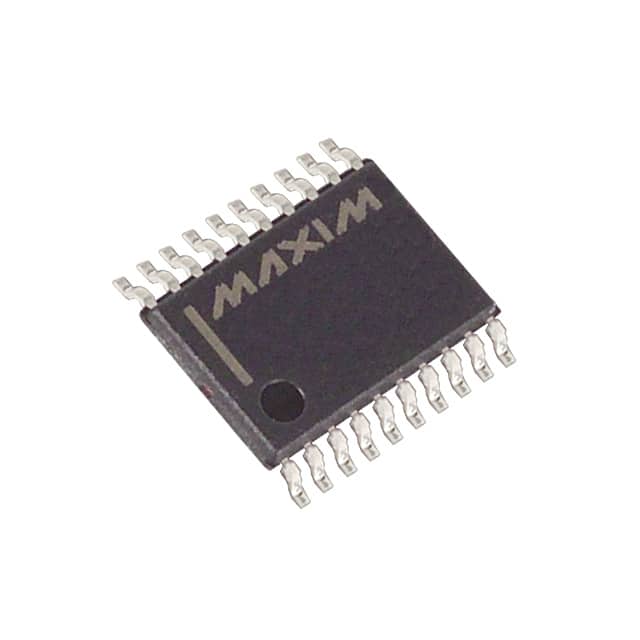

MAX1280BCUP+T
IC ADC 12BIT SAR 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1280BCUP-T is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component offers selectable input configurations for 4 single-ended or 8 pseudo-differential channels, all processed by a single ADC core. It features an SPI serial interface for data transfer and supports both external and internal voltage references. The MAX1280BCUP-T operates with analog and digital supply voltages of 5V and achieves a sampling rate of up to 400 kSPS. Packaged in a 20-TSSOP, its surface-mount design is suitable for applications in industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
