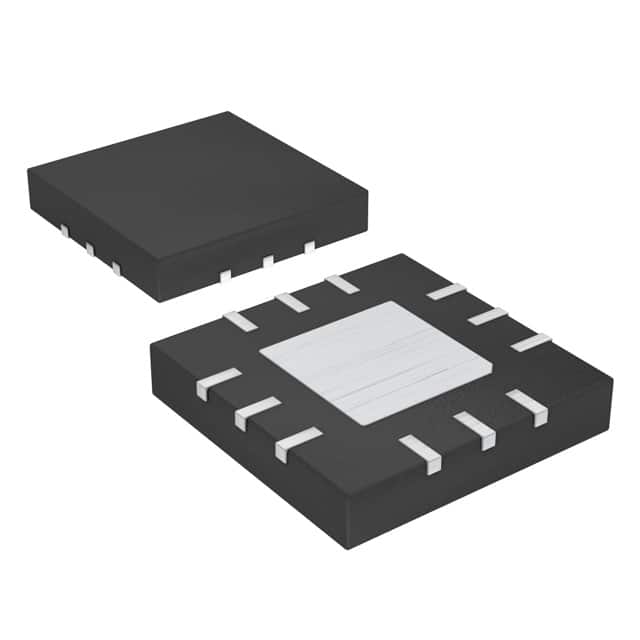

MAX1278ETC+T
IC ADC 12BIT SAR 12TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1278ETC-T is a 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This single-channel device features a 1.8M samples per second sampling rate and an internal voltage reference. The MAX1278ETC-T utilizes a differential input type and offers a 1:1 S/H-to-ADC ratio. Data is communicated via an SPI interface. This component is designed for surface mount applications within a 12-TQFN (4x4) package. It operates over a temperature range of -40°C to 85°C. Analog supply voltage is 5V, while digital supply can range from 1.8V to 5.25V. This converter finds application in industrial, medical, and communications systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Sampling Rate (Per Second) | 1.8M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 12-TQFN (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
