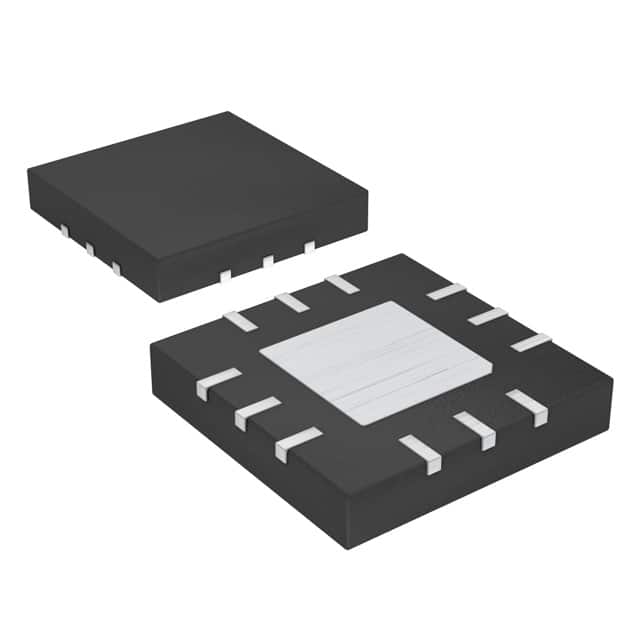

MAX1276ETC+T
IC ADC 12BIT SAR 12TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1276ETC-T is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single differential input and an integrated sample-and-hold (S/H) circuit. It offers a sampling rate of 1.8 Msps. The device supports a serial peripheral interface (SPI) for data transfer. Analog supply voltage is 5V, while digital supply can range from 1.8V to 5.25V. The MAX1276ETC-T is housed in a 12-TQFN (4x4) package with an exposed pad, designed for surface mounting. Its operating temperature range is -40°C to 85°C. This ADC is suitable for applications in industrial automation, medical instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Sampling Rate (Per Second) | 1.8M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 12-TQFN (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
