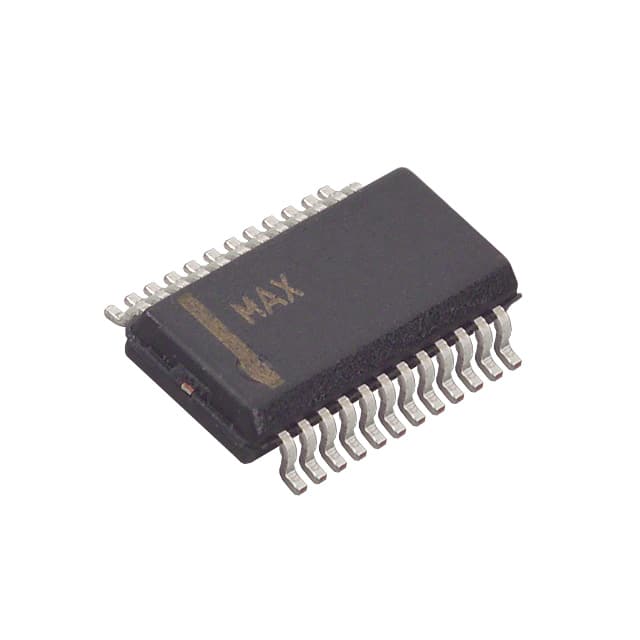

MAX1264AEEG+T
IC ADC 12BIT SAR 24QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1264AEEG-T is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a 2-channel or 4-channel multiplexer, an internal sample-and-hold amplifier, and a 1:1 S/H to ADC ratio. It supports both pseudo-differential and single-ended input types and offers external or internal voltage reference options. The device operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.5V. Its parallel data interface facilitates integration into systems requiring a sampling rate of up to 400 kSPS. The MAX1264AEEG-T is supplied in a 24-QSOP package suitable for surface mounting and operates within an industrial temperature range of -40°C to 85°C. This component finds application in various industries, including industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 24-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
