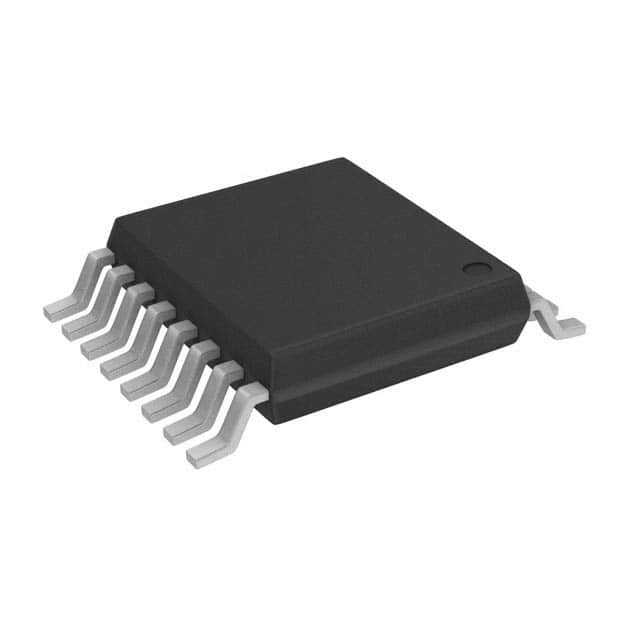

MAX1254BEUE+T
IC ADC 12BIT PIPELINED 16TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated presents the MAX1254BEUE-T, a 12-bit pipelined Analog-to-Digital Converter. This component features 8 input channels with multiplexer and sample-and-hold (S/H) circuitry. The data interface is SPI compliant, and it offers an integrated temperature sensor for enhanced functionality. Designed for surface mount applications, it is supplied in a 16-TSSOP package. The MAX1254BEUE-T operates with analog and digital supply voltages of 5V and supports both differential and single-ended input types. Its configurable reference can be either external or internal, and it achieves a sampling rate of 94kSPS. This device is suitable for applications in industrial automation, test and measurement, and medical instrumentation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 94k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 16-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
