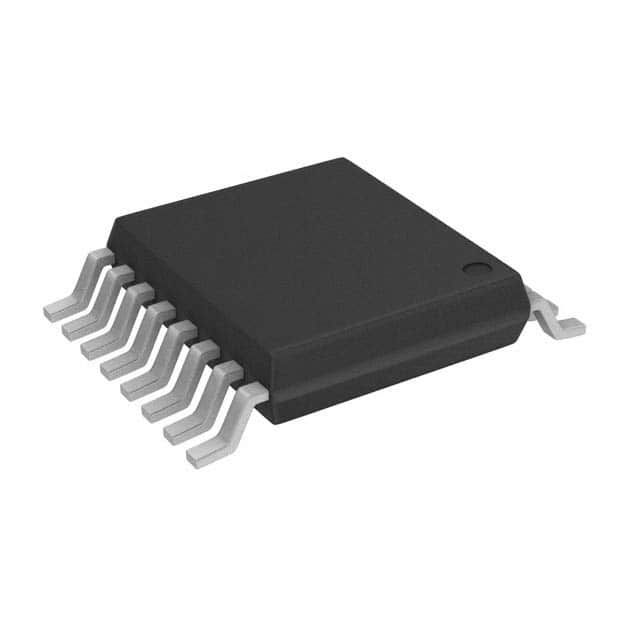

MAX1253BEUE+T
IC ADC 12BIT PIPELINED 16TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1253BEUE-T is a 12-bit pipelined analog-to-digital converter (ADC). This component features 8 selectable input channels, configurable for single-ended or differential inputs, and includes an integrated sample-and-hold (S/H) circuit. The ADC utilizes a pipelined architecture, achieving a sampling rate of up to 94kSPS. Data is transferred via an SPI interface. The device operates over a temperature range of -40°C to 85°C and requires analog and digital supply voltages between 2.7V and 3.6V. Additional features include an internal temperature sensor. This surface-mount component is housed in a 16-TSSOP package and is supplied on tape and reel. Its specifications make it suitable for applications in industrial automation, medical instrumentation, and portable test equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 94k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 16-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
