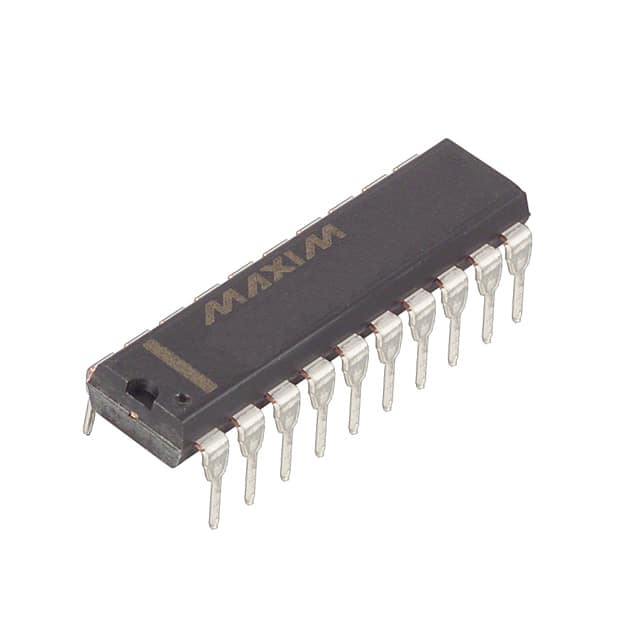

MAX1245BCPP+
IC ADC 12BIT SERIAL 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1245BCPP- is a 12-bit, 100ksps successive approximation analog-to-digital converter. This component features a programmable input multiplexer supporting 4 single-ended or 2 differential inputs, or 8 single-ended or 4 differential inputs. The data interface is SPI compatible. The device operates from a single 2.375V to 3.3V supply for both analog and digital sections. It requires an external reference. The MAX1245BCPP- is housed in a 20-DIP package and is suitable for applications in industrial and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.375V ~ 3.3V |
| Voltage - Supply, Digital | 2.375V ~ 3.3V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
