MAX1231BCTI+T

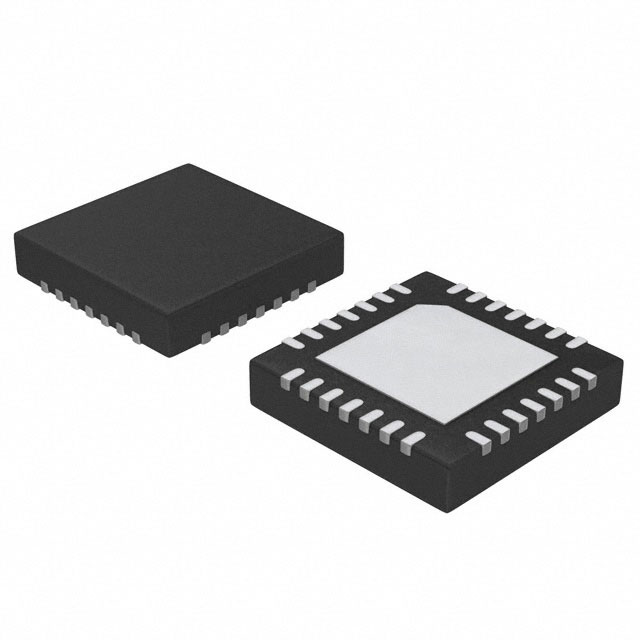

IC ADC 12BIT SAR 28TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1231BCTI-T is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component offers 8 single-ended or 4 differential input channels, with a total of 16 input channels available. It features an integrated sample-and-hold (S/H) circuit, a ratio of S/H to ADC of 1:1, and supports both internal and external voltage references. The data interface is SPI, facilitating communication with microcontrollers. Notable features include an on-chip temperature sensor. This ADC is designed for surface mount applications and comes in a 28-TQFN (5x5) package, supplied on tape and reel. Typical applications include industrial automation, medical equipment, and portable measurement devices. The operating temperature range is 0°C to 70°C, with analog and digital supply voltages between 2.7V and 3.6V. The maximum sampling rate is 300kSPS.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8, 16 |
| Supplier Device Package | 28-TQFN (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
