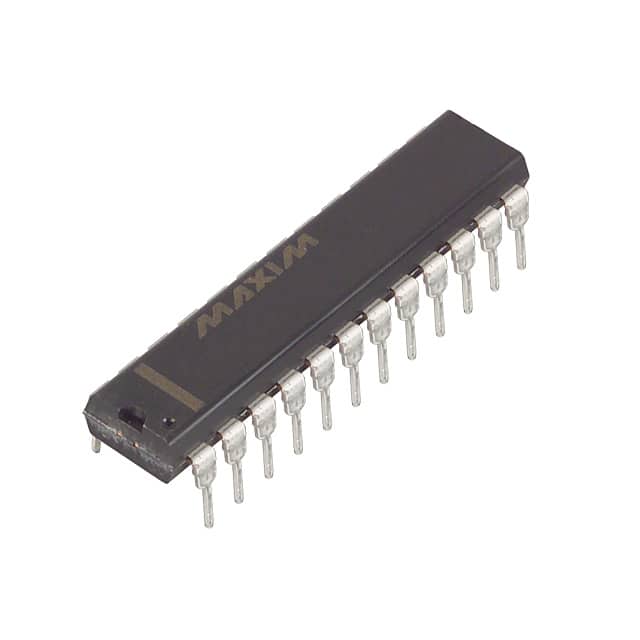

MAX122AENG+
IC ADC 12BIT 333KSPS 24-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX122AENG- is a 12-bit, 333kSPS SAR Analog-to-Digital Converter. This through-hole component features a single-ended input with a 1:1 S/H to ADC ratio. The device offers both internal and external reference types and utilizes a parallel data interface. It operates from analog supply voltages of 5V and -10.8V to 15.75V, with a digital supply voltage of 5V. The MAX122AENG- is packaged in a 24-DIP (0.300", 7.62mm) configuration and operates within an ambient temperature range of -40°C to 85°C. This component finds application in industrial and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -10.8V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
