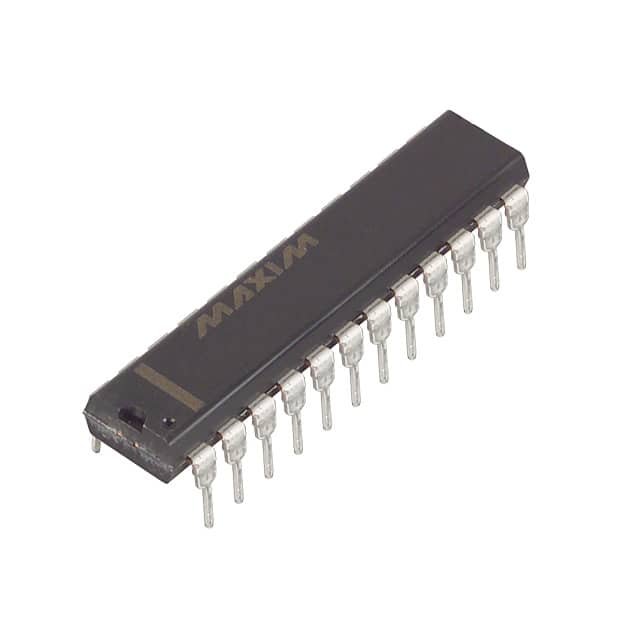

MAX122AENG
IC ADC 12BIT SAR 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX122AENG is a 12-bit successive approximation analog-to-digital converter (ADC). This through-hole component features a single-ended input and a 1:1 Sample-and-Hold to ADC ratio. The device supports both external and internal reference types and offers a sampling rate of up to 333kSPS. It operates within a temperature range of -40°C to 85°C and is packaged in a 24-pin DIP. Analog supply voltage can range from 5V to ±15.75V, with a digital supply voltage of 5V. Applications for this component include industrial automation and instrumentation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -10.8V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
