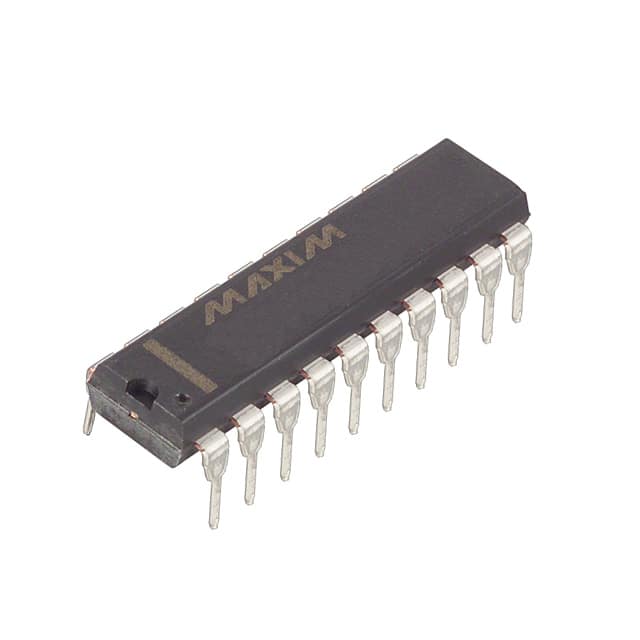

MAX1202BEPP
IC ADC 12BIT SAR 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1202BEPP is a 12-bit successive approximation analog-to-digital converter (ADC) featuring a 4 or 8-channel multiplexer. This component, packaged in a 20-PDIP through-hole configuration, operates with analog supply voltages of ±5V or 5V and digital supply voltages from 2.7V to 5.25V. It offers a sampling rate of up to 133kSPS and supports both external and internal voltage references. The data output is provided via an SPI interface, and it accommodates both differential and single-ended input types. This ADC is suitable for applications requiring precise analog-to-digital conversion in industrial automation, medical instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 133k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
