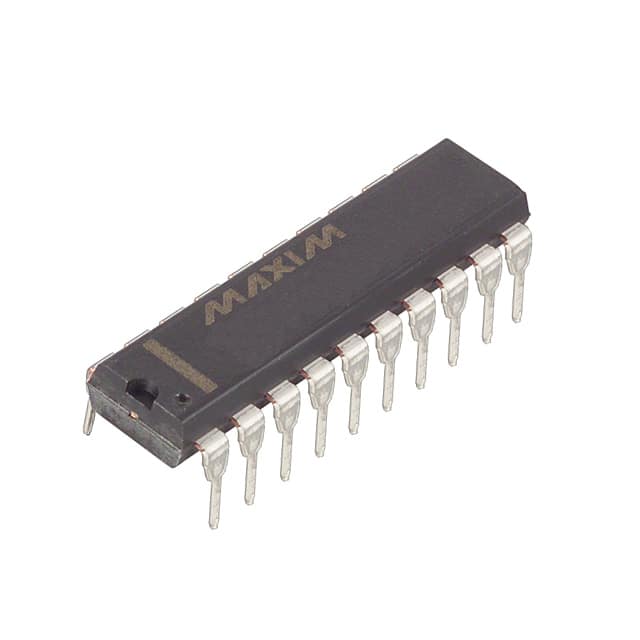

MAX1202BCPP+
IC ADC 12BIT SAR 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1202BCPP- is a 12-bit, 133kSPS successive approximation register (SAR) Analog-to-Digital Converter (ADC). This component features a configurable input multiplexer supporting 4 single-ended or 2 differential inputs, or 8 single-ended inputs. It offers both internal and external voltage reference options and a 1:1 S/H ratio to ADC. The MAX1202BCPP- communicates via a serial peripheral interface (SPI). Designed for through-hole mounting in a 20-PDIP package, it operates with analog supply voltages of ±5V or 5V and digital supply voltages from 2.7V to 5.25V. This ADC is utilized in applications such as industrial automation, test and measurement, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 133k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
