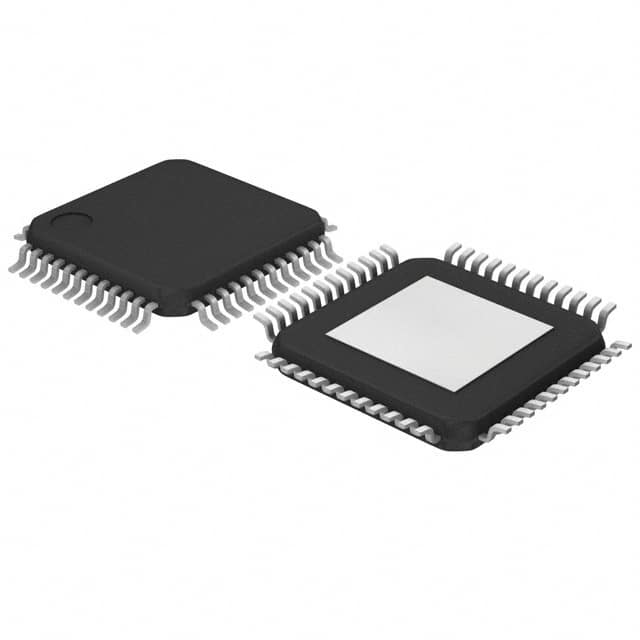

MAX1185ECM+TD
IC ADC 10BIT PIPELINED 48TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1185ECM-TD is a 10-bit, 2-channel pipelined analog-to-digital converter. This device features simultaneous sampling and supports both differential and single-ended input types. The ADC offers a high sampling rate of 20MSPS per channel and utilizes a parallel data interface. It operates from a single 2.7V to 3.6V supply for both analog and digital domains. The MAX1185ECM-TD is housed in a 48-TQFP-EP (7x7) surface-mount package and is supplied on tape and reel. This component is suitable for applications requiring high-speed data acquisition, including instrumentation, medical imaging, and telecommunications. It operates within an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
