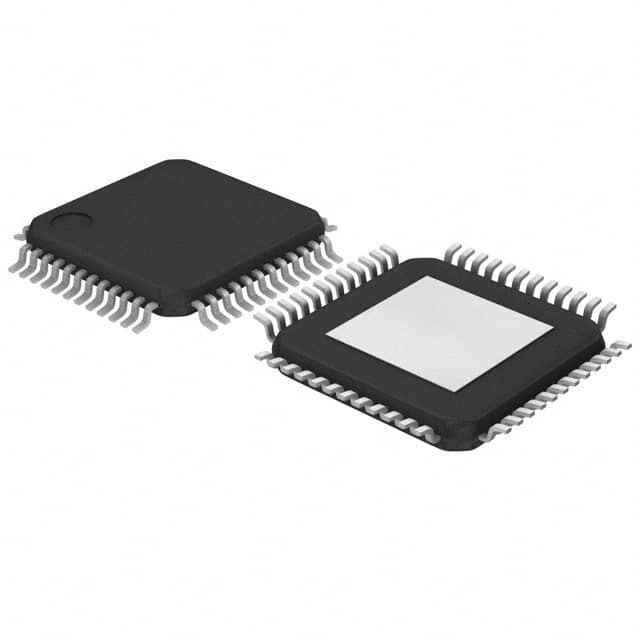

MAX1180ECM+TD
IC ADC 10BIT PIPELINED 48TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX1180ECM-TD is a 10-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features 2 input channels and a pipelined architecture, enabling a sampling rate of up to 105MSPS. It offers 2 ADCs with simultaneous sampling capabilities, supporting both differential and single-ended input types. The MAX1180ECM-TD utilizes a parallel data interface for efficient data transfer. With integrated Sample-and-Hold (S/H) circuitry, it provides a 1:1 S/H to ADC ratio. The device operates over a temperature range of -40°C to 85°C and requires analog and digital supply voltages between 2.7V and 3.6V. Packaged in a 48-TQFP Exposed Pad (7x7) and supplied on tape and reel, this ADC is suitable for applications in high-speed communications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
