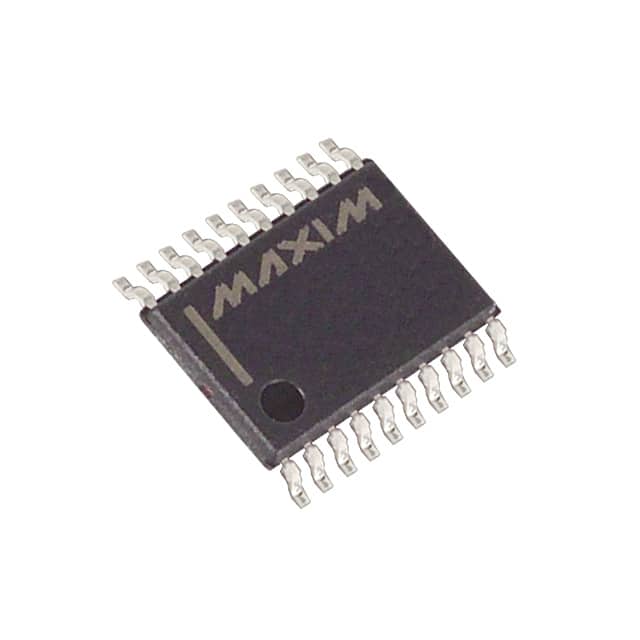

MAX1177AEUP+
IC ADC 16BIT SAR 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1177AEUP- is a 16-bit, single-input, successive approximation register (SAR) analog-to-digital converter. This component features a 1:1 Sample-and-Hold (S/H) to ADC ratio and offers both external and internal voltage reference options. It operates with an analog supply voltage of 5V and a digital supply range from 2.7V to 5.25V. The MAX1177AEUP- provides a sampling rate of up to 135kSPS and utilizes a parallel data interface. Its 20-TSSOP package, with a width of 4.40mm, is designed for surface mounting. This device is suitable for applications within the industrial and medical equipment sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 135k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
