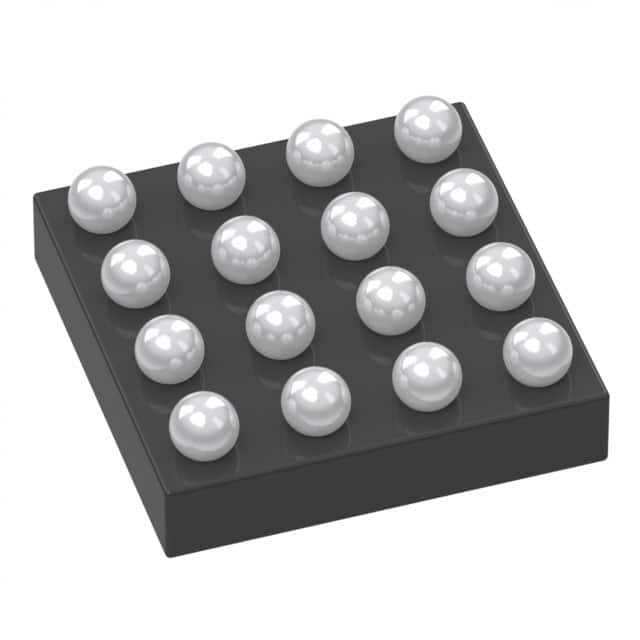

MAX11615EWE+T
IC ADC 12BIT SAR 16WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX11615EWE-T is a 12-bit, 4/8-channel Analog-to-Digital Converter (ADC) utilizing a Successive Approximation Register (SAR) architecture. This component features a single ADC with a 1:1 S/H to ADC ratio, supporting both internal and external voltage references. Data is communicated via an I2C interface. The device is designed for surface mount applications within a 16-WLP (Wafer-Level Package) and operates across an industrial temperature range of -40°C to 85°C. Analog and digital supply voltages are both supported from 2.7V to 3.6V. The MAX11615EWE-T is suitable for use in a variety of applications including consumer electronics, industrial control systems, and portable instrumentation. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 94.4k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 16-WLP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
