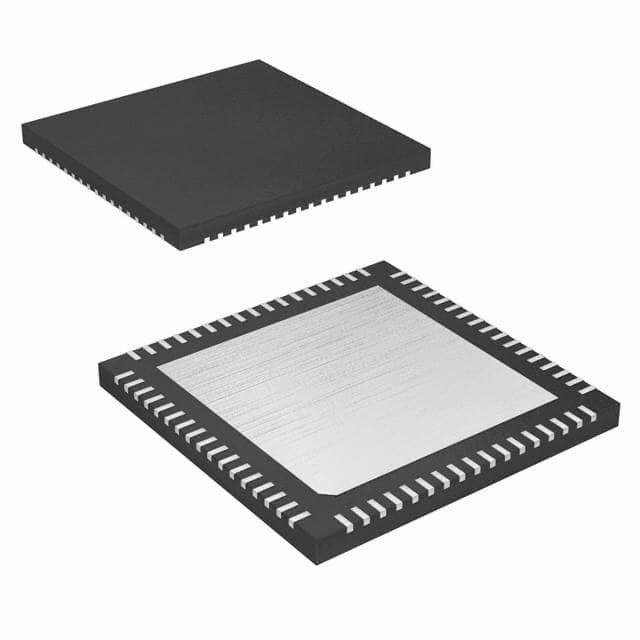

MAX1121EGK+D
IC ADC 8BIT 250MSPS 68QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1121EGK-D is an 8-bit pipelined analog-to-digital converter (ADC) designed for high-speed data acquisition. This component features a single input channel and a sampling rate of up to 250 MSPS. The MAX1121EGK-D offers a 1:1 S/H to ADC ratio and supports both external and internal voltage references. Its data interface is LVDS parallel, facilitating high-throughput data transfer. The device operates with analog and digital supply voltages ranging from 1.7V to 1.9V and has an operating temperature range of -40°C to 85°C. The package is a 68-QFN (10x10) with an exposed pad, suitable for surface mounting. This ADC is utilized in applications requiring precise and rapid conversion of analog signals, such as medical imaging, telecommunications, and high-speed instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 68-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 68-QFN (10x10) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
