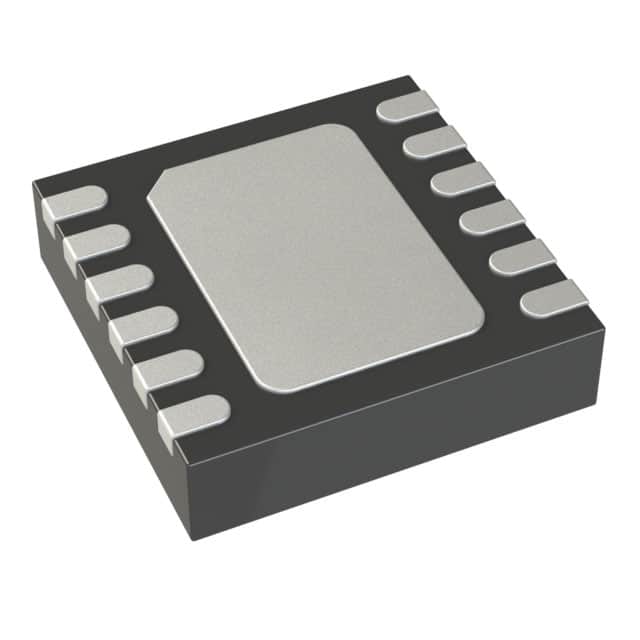

MAX11165ETC+T
IC ADC 16BIT SAR 12TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX11165ETC-T is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC). This single-input device features a pseudo-differential input type and an internal reference. Configured with sample-and-hold (S/H) functionality, it operates with a sampling rate of 250kSPS. The MAX11165ETC-T offers flexible digital interfaces supporting SPI and DSP protocols. It is housed in a compact 12-TDFN (3x3) surface-mount package. Analog supply voltage is 5V, while digital supply can range from 2.3V to 5V. This component is suitable for applications in industrial automation, medical instrumentation, and consumer electronics. The operating temperature range for this device is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.3V ~ 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Pseudo-Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 12-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
