MAX11057ECB+T
IC ADC 14BIT SAR 64TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

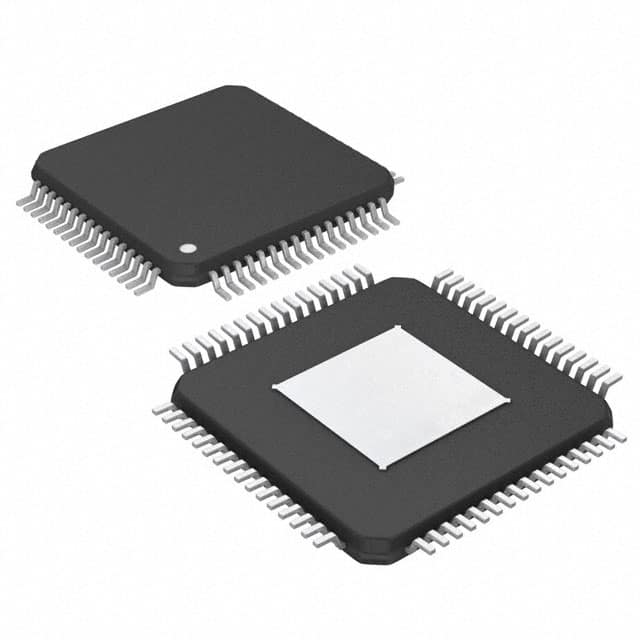

The Analog Devices Inc./Maxim Integrated MAX11057ECB-T is a 14-bit, 4-channel SAR analog-to-digital converter. This component features simultaneous sampling capabilities and offers both internal and external reference options. The data interface is parallel, and the device operates with an analog supply voltage of 5V and a digital supply range of 2.7V to 5.25V. Designed for surface mounting, it comes in a 64-TQFP-EP (10x10) package, supplied on tape and reel. The operating temperature range is -40°C to 85°C. This ADC is suitable for applications in industrial automation, test and measurement, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
