MAX11056ECB+T

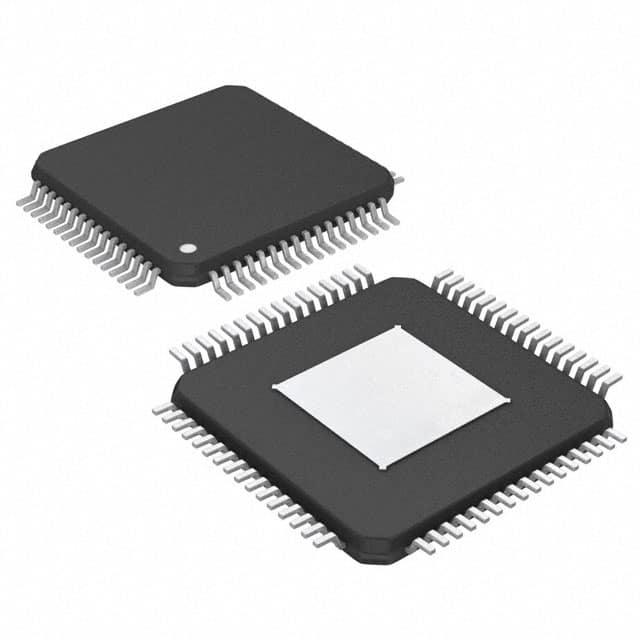

IC ADC 14BIT SAR 64TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX11056ECB-T is a 14-bit successive approximation register (SAR) analog-to-digital converter (ADC) featuring 8 single-ended inputs. This component offers simultaneous sampling across its 8 channels, enabling high-speed data acquisition. The device supports a sampling rate of up to 250 kSPS per channel. Its architecture includes an integrated sample-and-hold circuit with a 1:1 ratio. Data is output via a parallel interface. The MAX11056ECB-T is housed in a 64-TQFP-EP (10x10) exposed pad package, suitable for surface mounting. It operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.25V. The operating temperature range is -40°C to 85°C. This component is well-suited for applications in industrial automation, medical instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
