MAX11054ECB+
IC ADC 14BIT SAR 64TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX11054ECB- is a 14-bit, 4-channel successive approximation register (SAR) analog-to-digital converter. This component features simultaneous sampling and a 1:1 S/H-to-ADC ratio. The device offers both external and internal reference options and operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.25V. Data is interfaced via a parallel connection, and the converter has a sampling rate of up to 250kSPS per channel. The MAX11054ECB- is housed in a 64-TQFP Exposed Pad package, suitable for surface mounting. This component finds application in industrial automation and high-precision measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |

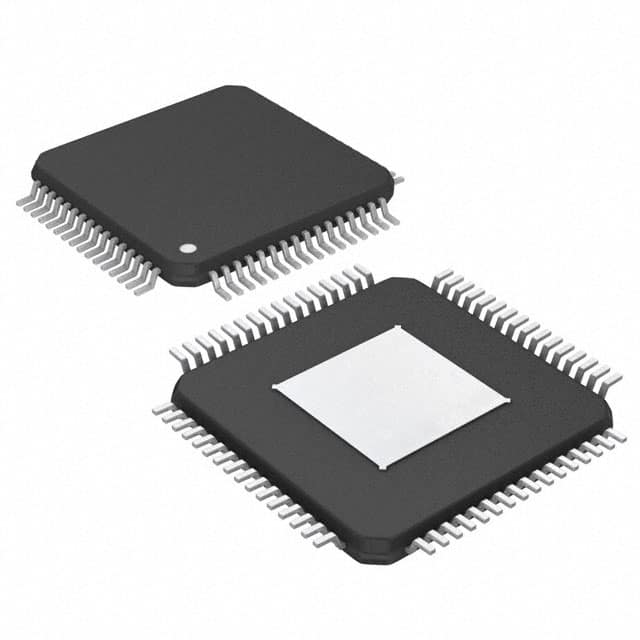

| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
