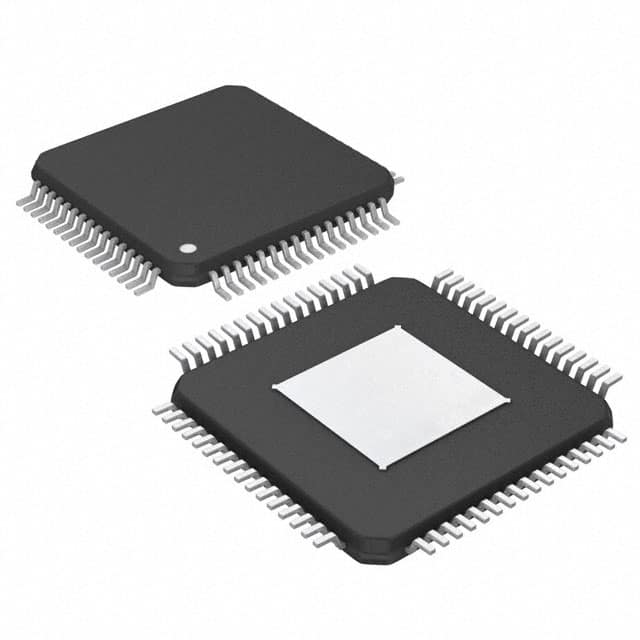

MAX11045ECB+T
IC ADC 16BIT SAR 64TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX11045ECB-T is a 16-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 6 analog input channels, configurable for simultaneous sampling, and a 1:1 S/H-to-ADC ratio. The data interface is parallel, and it supports both external and internal reference types. Designed for surface mounting, it is supplied in a 64-TQFP-EP (10x10) package and comes on a tape and reel for high-volume applications. Operating across a temperature range of -40°C to 85°C, it requires analog supply voltages of 5V and digital supply voltages from 2.7V to 5.25V. The MAX11045ECB-T finds application in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 6 |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 6 |
