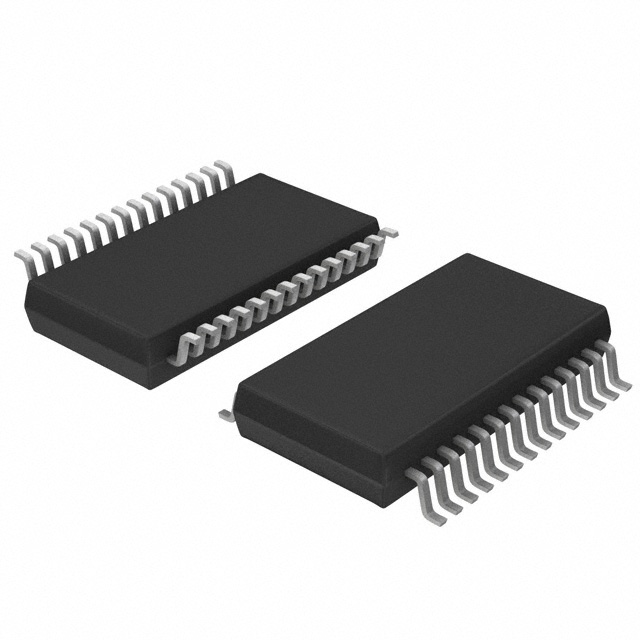

MAX1090BEEI+T
IC ADC 10BIT SAR 28QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1090BEEI-T is a 10-bit, 4/8-input successive approximation register (SAR) analog-to-digital converter (ADC). This component features a 1:1 S/H to ADC ratio and offers both external and internal reference types. It operates with analog supply voltages of 5V and digital supply voltages from 2.7V to 5.5V. The MAX1090BEEI-T utilizes a parallel data interface and supports pseudo-differential and single-ended input types. Housed in a 28-QSOP package, it is designed for surface mounting and operates across a temperature range of -40°C to 85°C. The sampling rate is up to 400K samples per second. This component finds application in industrial automation, medical equipment, and consumer electronics. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 28-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
