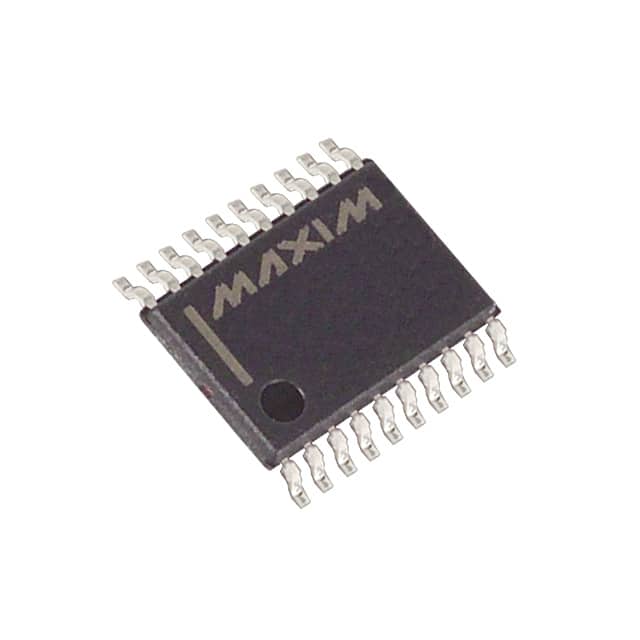

MAX1081BCUP+T
IC ADC 10BIT SAR 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1081BCUP-T is a 10-bit, 300kSPS Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers flexible input configurations with 4 single-ended or 8 pseudo-differential channels, selectable via an internal multiplexer. It supports both internal and external voltage references and communicates data through a serial peripheral interface (SPI). The MAX1081BCUP-T operates on analog and digital supply voltages ranging from 2.7V to 3.6V and is housed in a compact 20-TSSOP package suitable for surface mounting. Its performance characteristics make it suitable for applications in industrial automation, consumer electronics, and medical devices. This device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
