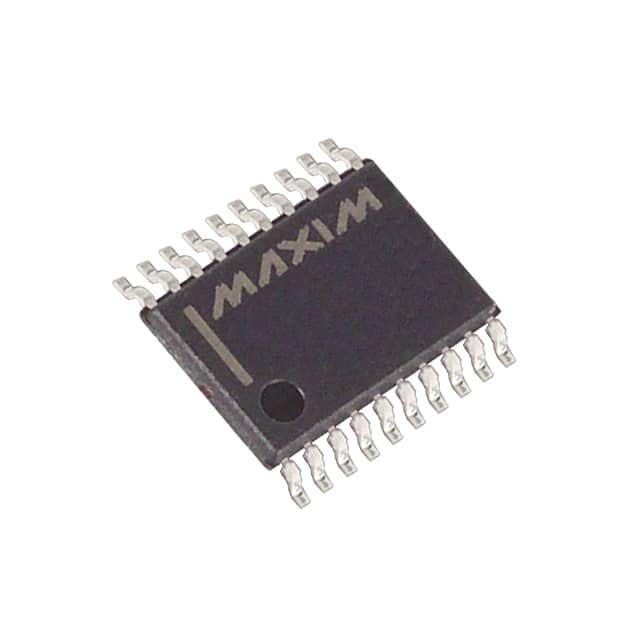

MAX1081AEUP+T
IC ADC 10BIT SAR 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1081AEUP-T is a 10-bit Analog to Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers selectable input configurations with 4 single-ended or 8 pseudo-differential inputs, managed by an internal multiplexer. The ADC provides a single conversion channel with a sampling rate of up to 300kSPS. Data is transferred via a serial peripheral interface (SPI). It supports both internal and external voltage references and operates across a wide temperature range of -40°C to 85°C. The device is housed in a 20-TSSOP package, suitable for surface mounting. Applications for this component can be found in industrial control systems, portable instrumentation, and battery-powered devices. The analog and digital supply voltage ranges are both 2.7V to 3.6V. This part is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
