MAX107ECS+T
IC ADC 6BIT FLASH 80TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

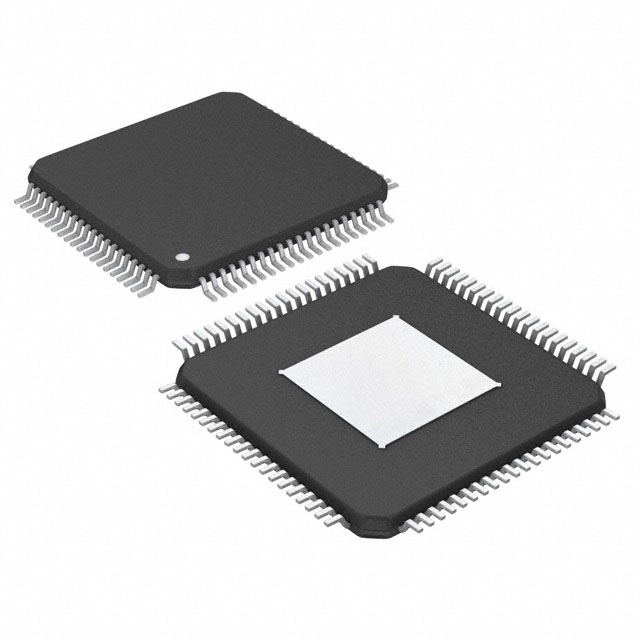

Analog Devices Inc./Maxim Integrated MAX107ECS-T is a 6-bit, 400MSPS flash Analog-to-Digital Converter (ADC) with two input channels. This component features an 80-TQFP-EP (12x12) exposed pad package suitable for surface mount applications. The MAX107ECS-T supports both differential and single-ended input types and utilizes LVDS for its parallel data interface. Its internal reference and FLASH architecture enable high-speed conversion. Operating across a temperature range of -40°C to 85°C, this ADC is powered by a 5V analog supply and a 3V to 3.6V digital supply. It finds application in high-speed data acquisition, instrumentation, and communications systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 6 |
| Configuration | ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 400M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 80-TQFP-EP (12x12) |
| Architecture | FLASH |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
