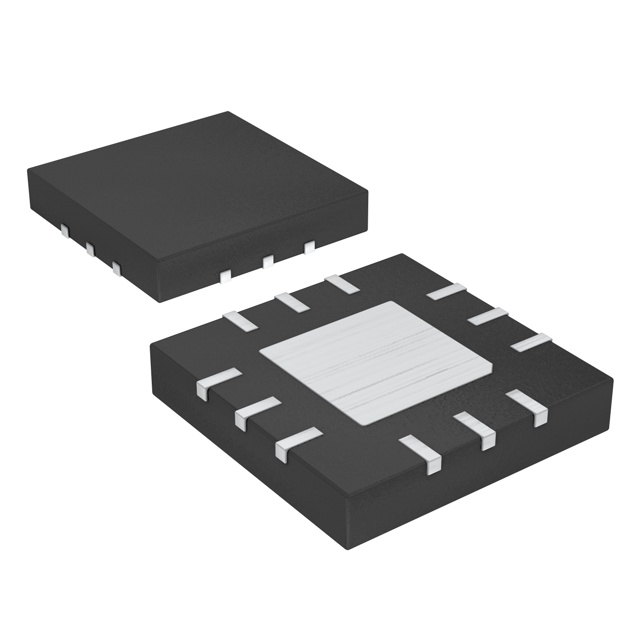

MAX1076CTC+
IC ADC 10BIT SAR 12TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX1076CTC- is a 10-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single input with a 1:1 Sample-and-Hold (S/H) to ADC ratio and an internal reference. The MAX1076CTC- offers a sampling rate of 1.8 MSPS and utilizes an SPI data interface. It operates with an analog supply voltage of 5V and a digital supply voltage ranging from 1.8V to 5.25V, with an operating temperature range of -40°C to 85°C. Packaged in a 12-TQFN (4x4) with an exposed pad, this surface-mount device is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 12-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Sampling Rate (Per Second) | 1.8M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 12-TQFN (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
