MAX1066BCUP+
IC ADC 14-BIT 165KSPS 20-TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

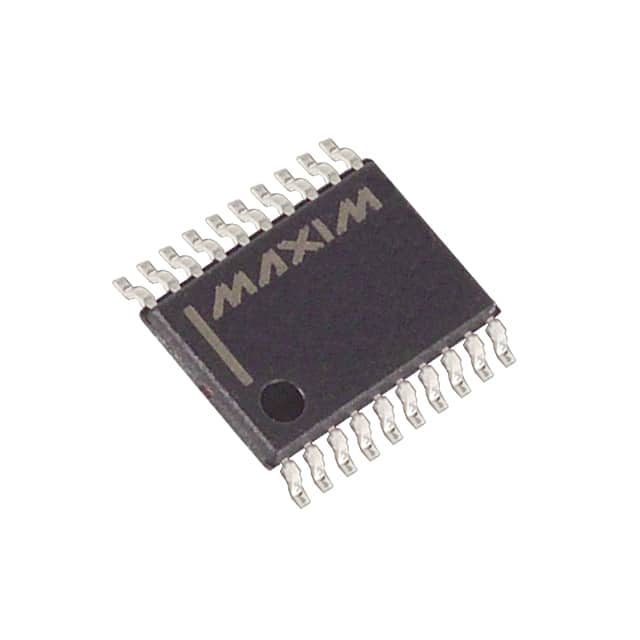

The Analog Devices Inc./Maxim Integrated MAX1066BCUP- is a 14-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This single-input device operates at a sampling rate of 165kSPS and offers both internal and external reference options. The MAX1066BCUP- is housed in a compact 20-TSSOP package with a surface mount configuration. Its analog supply voltage is 5V, while the digital supply can range from 2.7V to 5.25V. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 165k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
