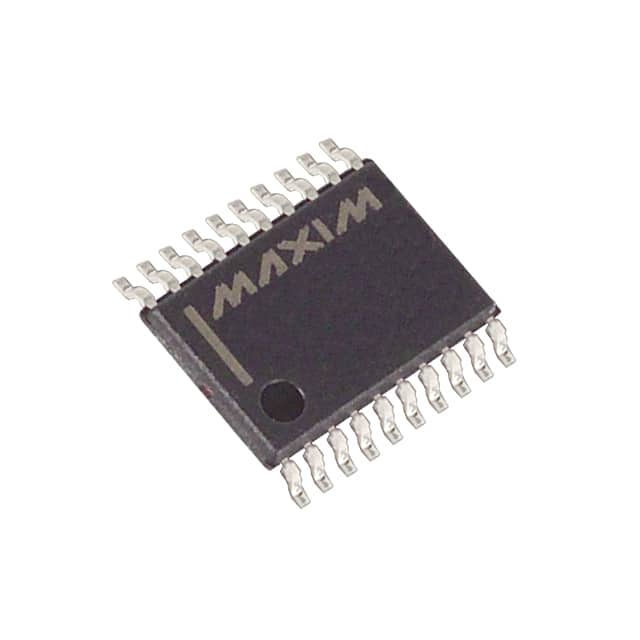

MAX1033BEUP+T
IC ADC 14BIT SAR 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1033BEUP-T is a 14-bit successive approximation register (SAR) analog-to-digital converter (ADC) housed in a 20-TSSOP package. This component offers dual input configurations with 2 or 4 selectable inputs, managed by an internal multiplexer and programmable gain amplifier (PGA). It features an SPI data interface for efficient communication and supports both external and internal voltage references. The MAX1033BEUP-T operates with analog and digital supply voltages of 5V and achieves a sampling rate of up to 115kSPS. Its robust design and selectable input types make it suitable for applications in industrial automation, data acquisition systems, and sensor interfacing. This device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 115k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
