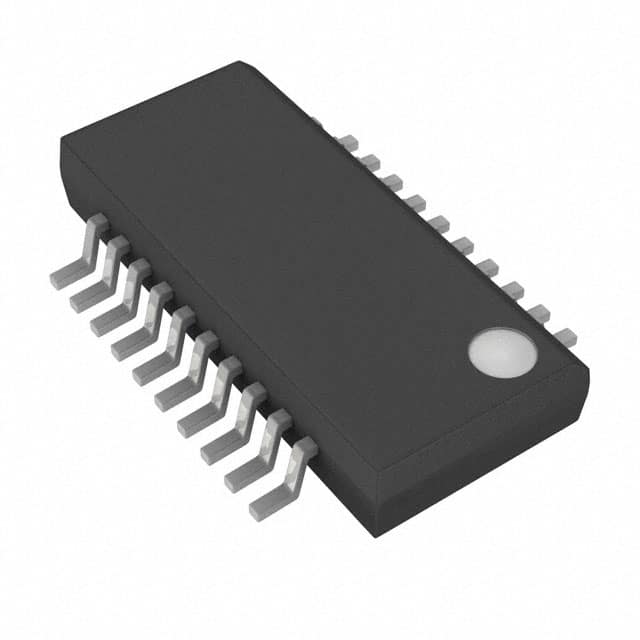

MAX1029BEEP+T
IC ADC 10BIT SAR 20QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1029BEEP-T is a 10-bit, successive approximation (SAR) analog-to-digital converter (ADC). This component features a single ADC with a sampling rate of up to 300kSPS. It supports both differential and single-ended input types, with 6 or 12 input channels configurable. The MAX1029BEEP-T includes an integrated temperature sensor and offers both internal and external voltage reference options. Data communication is facilitated via an SPI interface. This device is housed in a 20-QSOP package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. It finds application in industrial and instrumentation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 6, 12 |
| Supplier Device Package | 20-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
