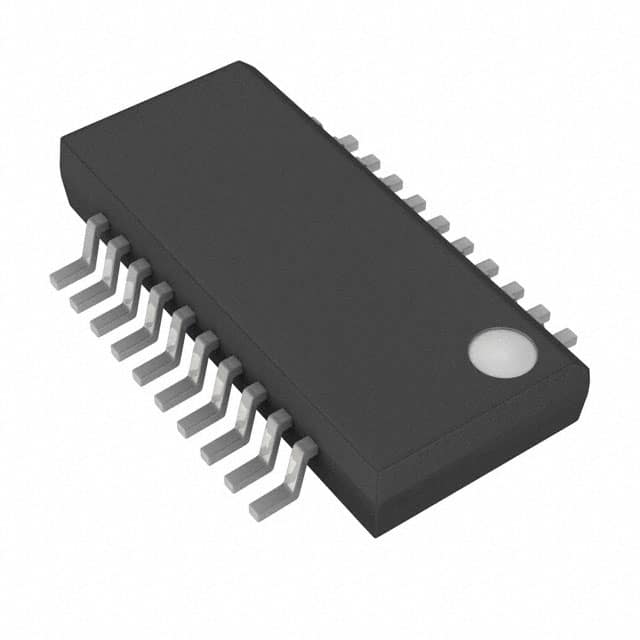

MAX1029BCEP+T
IC ADC 10BIT SAR 20QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1029BCEP-T is a 10-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component offers up to 12 single-ended or 6 differential inputs, configurable with a 1:1 S/H to ADC ratio. It features an integrated temperature sensor and supports both external and internal voltage references. Data is transferred via a serial peripheral interface (SPI). The device operates from a single 2.7V to 3.6V supply for both analog and digital rails and can achieve a sampling rate of up to 300kSPS. Packaged in a 20-QSOP (0.154" width) and supplied on tape and reel, the MAX1029BCEP-T is suitable for applications in industrial automation, medical equipment, and portable instrumentation. Its operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 6, 12 |
| Supplier Device Package | 20-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
