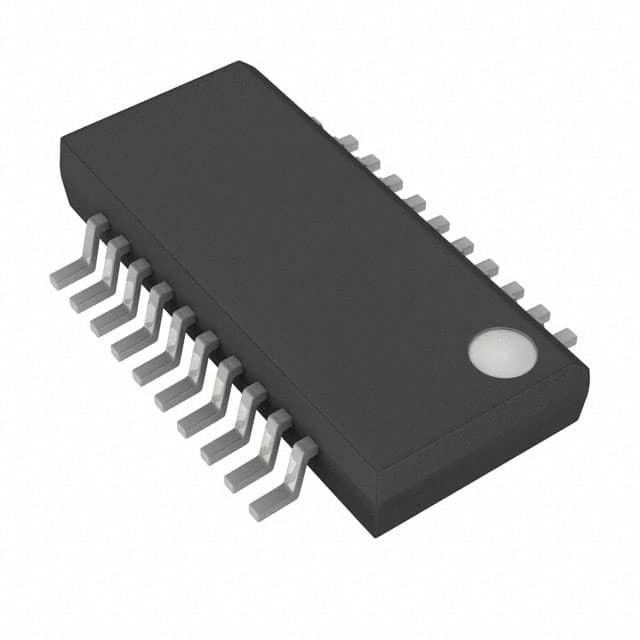

MAX1028BEEP+T
IC ADC 10BIT SAR 20QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1028BEEP-T is a 10-bit successive approximation register (SAR) Analog-to-Digital Converter (ADC). This component features a 300ksps sampling rate and supports 6 differential or 12 single-ended inputs. The MAX1028BEEP-T offers flexible reference options, utilizing either internal or external references. Its architecture includes a sample-and-hold (S/H) circuit, and it communicates via an SPI data interface. Additional integrated features include a temperature sensor. The device operates across an industrial temperature range of -40°C to 85°C, with analog and digital supply voltages of 5V. The MAX1028BEEP-T is supplied in a 20-QSOP surface-mount package and is presented on a tape and reel for high-volume applications. This ADC is suitable for use in various industrial automation and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 300k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 6, 12 |
| Supplier Device Package | 20-QSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
