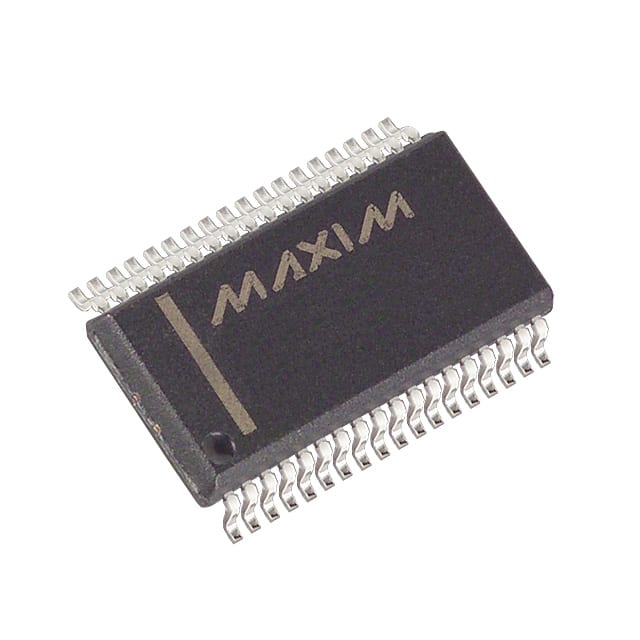

MAX1003CAX+T
IC ADC 6BIT PIPELINED 36SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1003CAX-T is a high-speed, 6-bit pipelined Analog-to-Digital Converter (ADC). This component features two independent ADC channels, each capable of simultaneous sampling. The pipelined architecture achieves a sampling rate of up to 90 MSPS per channel. It supports both differential and single-ended input types, with integrated programmable gain amplifiers (PGA) for flexible signal conditioning. The data output is provided via a parallel interface. Designed for surface mount applications, the MAX1003CAX-T is supplied in a 36-SSOP package. Typical applications include test and measurement equipment, high-frequency communication systems, and medical imaging. The device operates with analog supply voltages of 5V and digital supply voltages of 3.3V, within an operating temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA, Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 6 |
| Configuration | PGA-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.3V |
| Sampling Rate (Per Second) | 90M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 36-SSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
