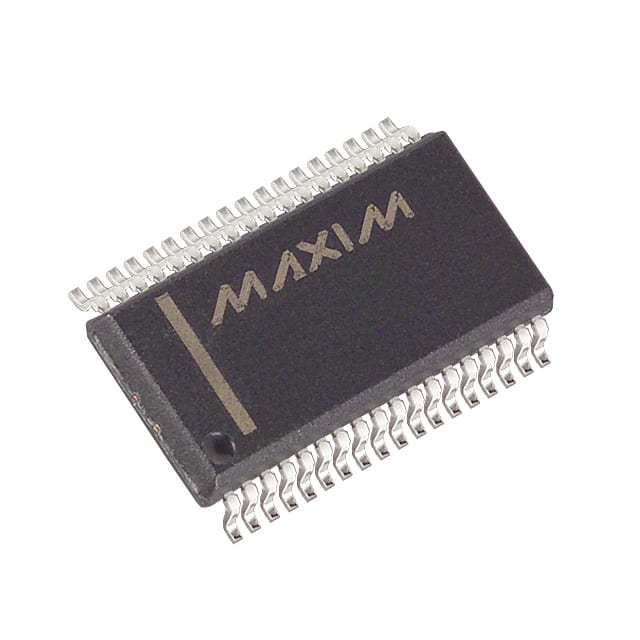

MAX1003CAX+
IC ADC 6BIT PIPELINED 36SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
6 Bit Analog to Digital Converter 2 Input 2 Pipelined 36-SSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA, Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 6 |
| Configuration | PGA-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.3V |
| Sampling Rate (Per Second) | 90M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 36-SSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
