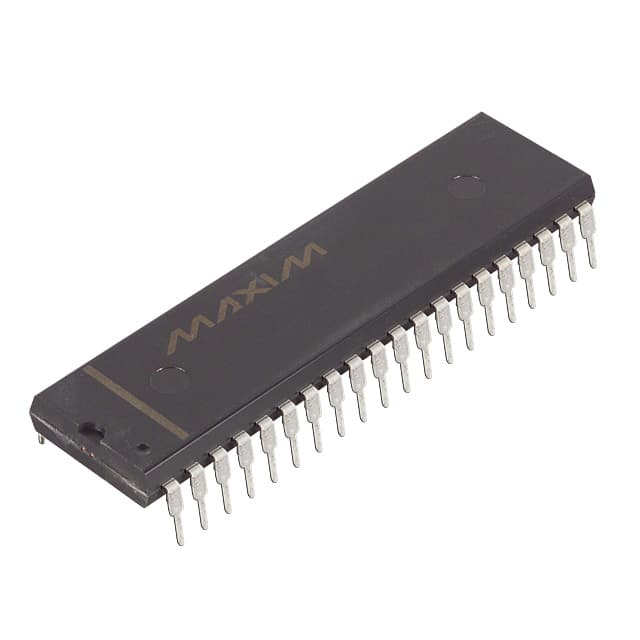

ICL7109EPL+
IC ADC 12BIT DUAL SLOPE 40DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 Dual Slope 40-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Sampling Rate (Per Second) | 30 |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 40-PDIP |
| Architecture | Dual Slope |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
