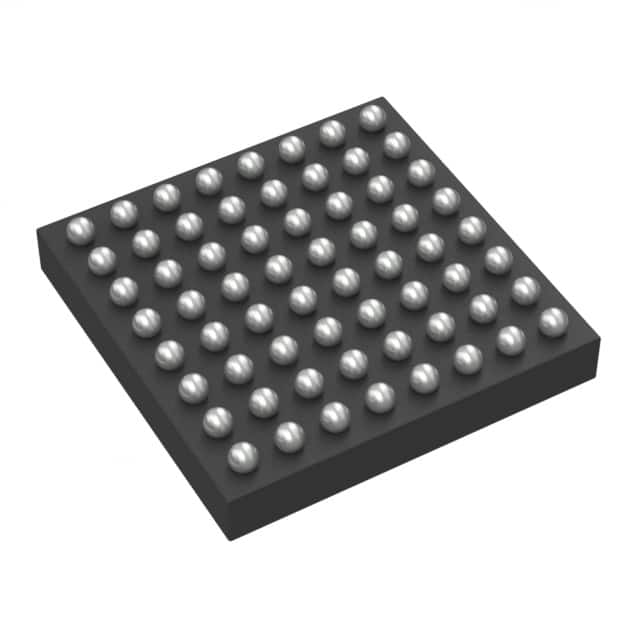

MAX4968BEXB+T
IC SW SPST-NOX16 34OHM 64CTBGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4968BEXB-T is a 16-circuit, single-pole, single-throw, normally open (SPST-NO) analog switch. This component features a low on-resistance of 34 Ohms maximum, with channel-to-channel matching of 1.02 Ohms. The device operates with a single supply voltage ranging from 10V to 12.5V and offers a -3dB bandwidth of 30MHz. It is packaged in a 64-CTBGA (7x7) format, suitable for surface mount applications. Key performance parameters include a charge injection of 150pC and crosstalk of -69dB at 5MHz. Operating temperature range is -40°C to 85°C. This device is commonly utilized in applications requiring high channel density and precise signal routing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 34Ohm |
| -3db Bandwidth | 30MHz |
| Supplier Device Package | 64-CTBGA (7x7) |
| Voltage - Supply, Single (V+) | 10V ~ 12.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 150pC |
| Crosstalk | -69dB @ 5MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.02Ohm |
| Switch Time (Ton, Toff) (Max) | 5µs, 3.5µs |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 16 |
