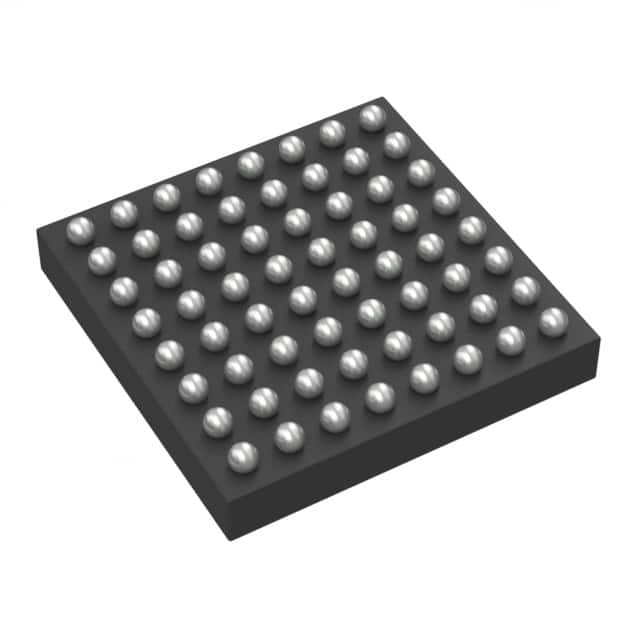

MAX4968BEXB+
IC SW SPST-NOX16 34OHM 64CTBGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
16 Circuit IC Switch 1:1 34Ohm 64-CTBGA (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 34Ohm |
| -3db Bandwidth | 30MHz |
| Supplier Device Package | 64-CTBGA (7x7) |
| Voltage - Supply, Single (V+) | 10V ~ 12.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 150pC |
| Crosstalk | -69dB @ 5MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.02Ohm |
| Switch Time (Ton, Toff) (Max) | 5µs, 3.5µs |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 16 |
