MAX4948EBA+T

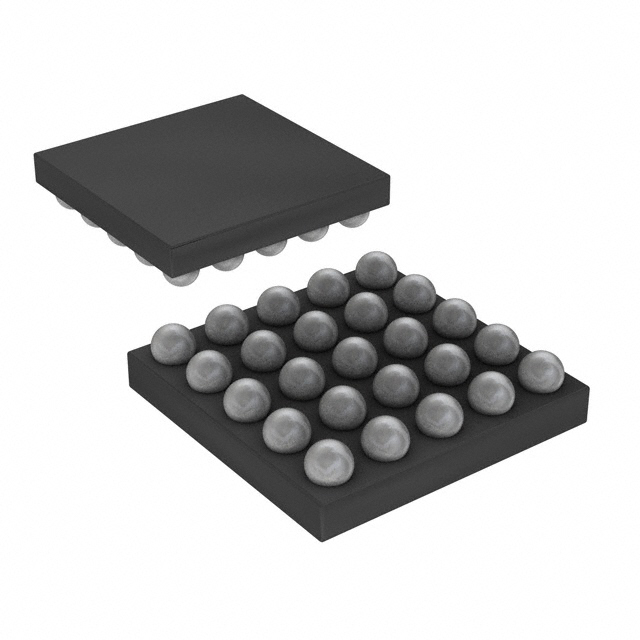

IC SWITCH SPDT X 6 5.5OHM 25UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4948EBA-T is a 2:1 multiplexer/demultiplexer featuring six SPDT (Single Pole Double Throw) switches. This component offers a low on-state resistance of 5.5 Ohms maximum and channel-to-channel matching of 300 mOhms. With a -3dB bandwidth of 300MHz, it is suitable for applications requiring high-frequency signal routing. The device operates from a single supply voltage ranging from 1.8V to 5.5V and has a low leakage current of 3nA maximum. Charge injection is rated at 10pC, and crosstalk is -90dB at 1MHz. The MAX4948EBA-T is supplied in a 25-UCSP (2.54x2.54) package, mounted via surface mount, and is provided on tape and reel. Typical applications include consumer electronics, industrial automation, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 5.5Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 25-UCSP (2.54x2.54) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 10pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns |
| Channel Capacitance (CS(off), CD(off)) | 15pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Number of Circuits | 6 |
