MAX4936ACTO+T
IC MUX OCTAL 42TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More

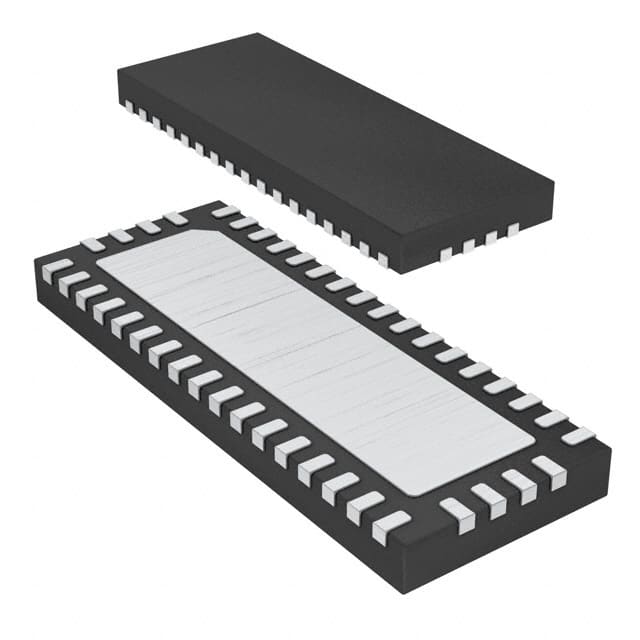

Analog Devices Inc./Maxim Integrated MAX4936ACTO-T is an 8-circuit, octal analog switch designed for applications requiring high bandwidth and reliable signal routing. This component features a 42-TQFN (3.5x9) exposed pad package, facilitating efficient surface mount assembly. With a -3dB bandwidth of 100MHz, it is suitable for signal switching in telecommunications, industrial automation, and consumer electronics. The device operates within a temperature range of 0°C to 70°C and is supplied on a tape and reel for automated manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 42-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 42-TQFN (3.5x9) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 8 |
