MAX4936ACTO+
IC MUX OCTAL 42TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More

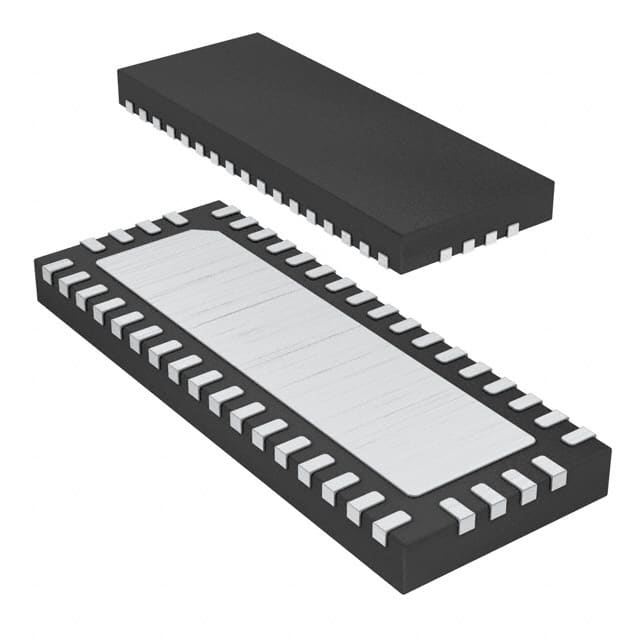

Analog Devices Inc./Maxim Integrated MAX4936ACTO- is an octal analog switch in a 42-TQFN (3.5x9) package. This component features 8 switch circuits and a -3dB bandwidth of 100MHz, making it suitable for applications requiring high-speed signal routing. It is designed for surface mount installation and operates within a temperature range of 0°C to 70°C. The MAX4936ACTO- is commonly utilized in industrial automation, consumer electronics, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 42-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 42-TQFN (3.5x9) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 8 |
