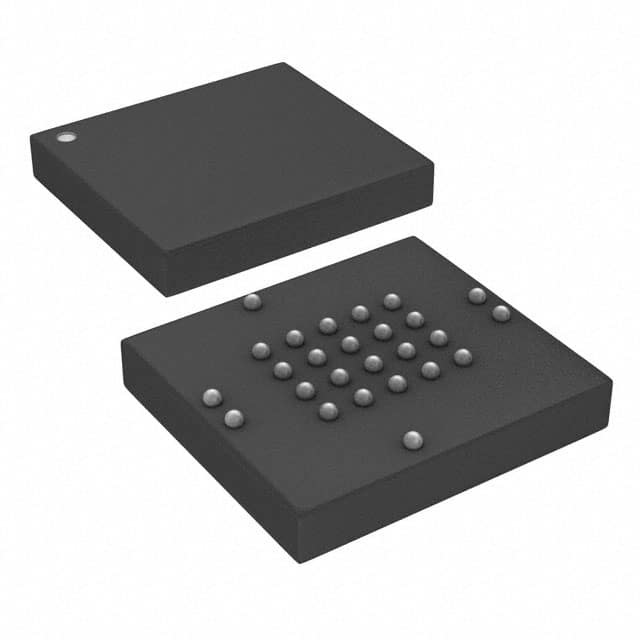

MAX4802CXZ+T
IC SW SPST-NOX8 38OHM 72CSBGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4802CXZ-T is an 8-circuit, single-pole, single-throw, normally open (SPST-NO) analog switch. This component features a maximum on-state resistance of 38 Ohms and exhibits channel-to-channel matching (?Ron) of 1.9 Ohms. Designed for surface mount applications, it is supplied in a 72-CSBGA (6x5.35) package. The device operates with a single supply voltage ranging from 2.7V to 13.2V and has a switch time of 5µs for both turn-on and turn-off. Exhibiting a charge injection of 820pC and channel capacitance of 18pF, it is suitable for applications requiring high-density signal routing. Typical industries utilizing this component include telecommunications and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 26-LFBGA, CSBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 38Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 72-CSBGA (6x5.35) |
| Voltage - Supply, Single (V+) | 2.7V ~ 13.2V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 820pC |
| Crosstalk | -80dB @ 5MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.9Ohm |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| Channel Capacitance (CS(off), CD(off)) | 18pF |
| Current - Leakage (IS(off)) (Max) | 4µA |
| Number of Circuits | 8 |
