MAX4802CCM+T

Banner
productimage

MAX4802CCM+T

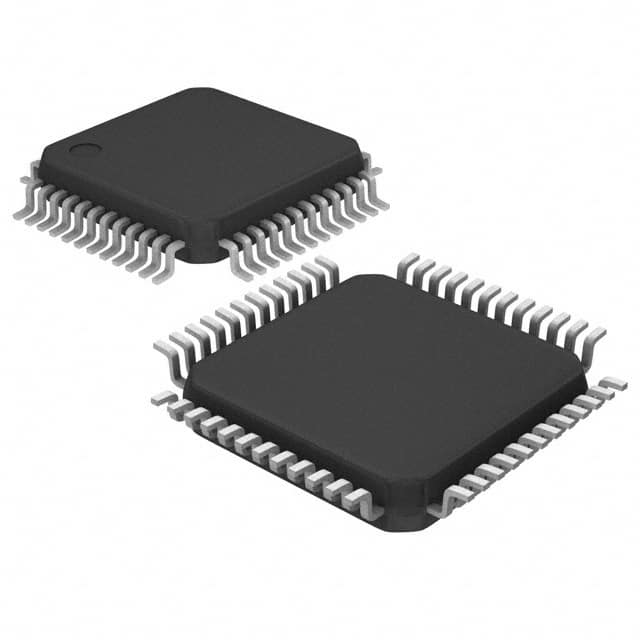

IC SWITCH SPST-NOX8 38OHM 48LQFP

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: Analog Switches, Multiplexers, Demultiplexers

Quality Control: Learn More

The Analog Devices Inc./Maxim Integrated MAX4802CCM-T is an 8-circuit, single-pole, single-throw, normally open (SPST-NO) analog switch. This component features a low on-resistance of 38 Ohm maximum and excellent channel-to-channel matching of 1.9 Ohm. With a charge injection of 820 pC and a channel capacitance (CS(off), CD(off)) of 18 pF, it is suitable for applications requiring precise signal routing. The device operates over a temperature range of 0°C to 70°C and is supplied in a 48-LQFP package designed for surface mounting. Its leakage current is a maximum of 4 µA, with crosstalk rated at -80 dB at 5 MHz. This switch is utilized in various industries, including test and measurement, industrial automation, and communication systems. The MAX4802CCM-T is provided in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case48-LQFP
Mounting TypeSurface Mount
Operating Temperature0°C ~ 70°C (TA)
On-State Resistance (Max)38Ohm
-3db Bandwidth-
Supplier Device Package48-LQFP (7x7)
Voltage - Supply, Single (V+)2.7V ~ 13.2V
Voltage - Supply, Dual (V±)-
Charge Injection820pC
Crosstalk-80dB @ 5MHz
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Channel-to-Channel Matching (ÃŽ”Ron)1.9Ohm
Switch Time (Ton, Toff) (Max)5µs, 5µs
Channel Capacitance (CS(off), CD(off))18pF
Current - Leakage (IS(off)) (Max)4µA
Number of Circuits8
