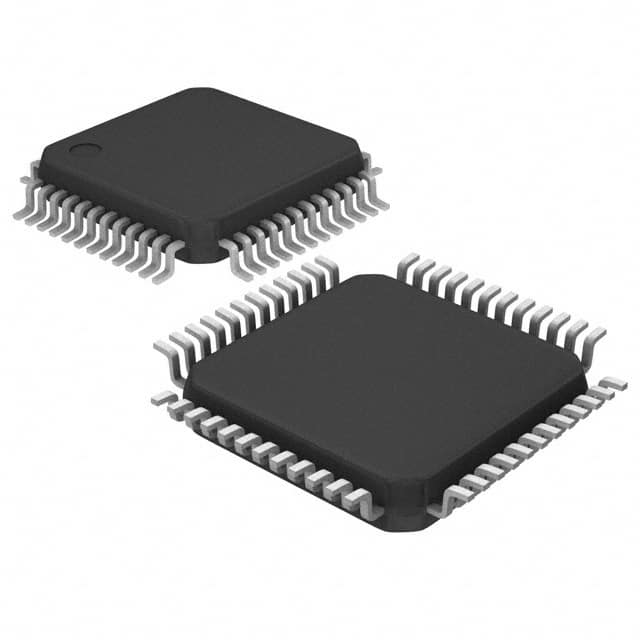

MAX4802ACCM+T
IC SWITCH SPST-NOX8 38OHM 48LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4802ACCM-T is an 8-circuit SPST-NO analog switch. This component offers a low on-resistance of 38 Ohms maximum, with channel-to-channel matching of 1.9 Ohms. Featuring a 1:1 multiplexer/demultiplexer configuration, it operates with single supply voltages from 2.7V to 6V. The MAX4802ACCM-T exhibits a channel capacitance of 18pF and crosstalk of -80dB at 5MHz. Leakage current is specified at a maximum of 2µA. Switch times are 5µs for both turn-on and turn-off. Packaged in a 48-LQFP (7x7) surface mount configuration, this device operates within a temperature range of 0°C to 70°C. It is commonly employed in test and measurement equipment, communication systems, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 38Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply, Single (V+) | 2.7V ~ 6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -80dB @ 5MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.9Ohm |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| Channel Capacitance (CS(off), CD(off)) | 18pF |
| Current - Leakage (IS(off)) (Max) | 2µA |
| Number of Circuits | 8 |
