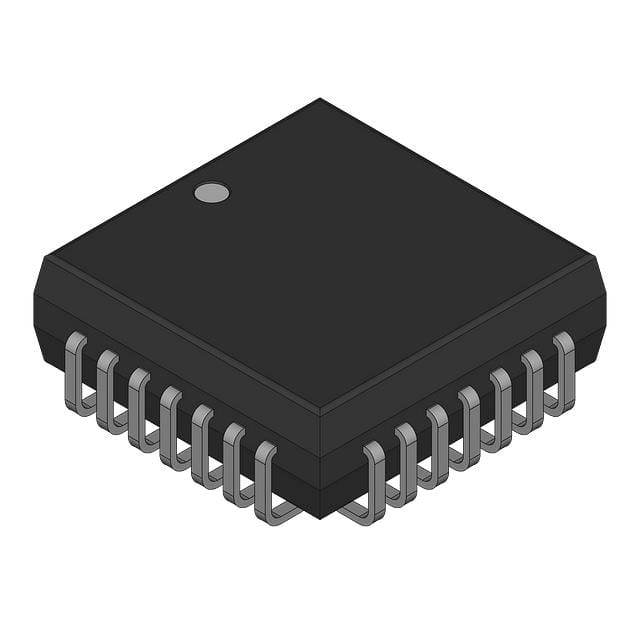

MAX4800CQI
IC SW SPSTX8 38OHM 28PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
8 Circuit IC Switch 1:1 38Ohm 28-PLCC (11.5x11.5)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 38Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-PLCC (11.5x11.5) |
| Voltage - Supply, Single (V+) | 2.7V ~ 13.2V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 820pC |
| Crosstalk | -80dB @ 5MHz |
| Switch Circuit | SPST - Open |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.9Ohm |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| Channel Capacitance (CS(off), CD(off)) | 11pF |
| Current - Leakage (IS(off)) (Max) | 4µA |
| Number of Circuits | 8 |
Request a Quote
