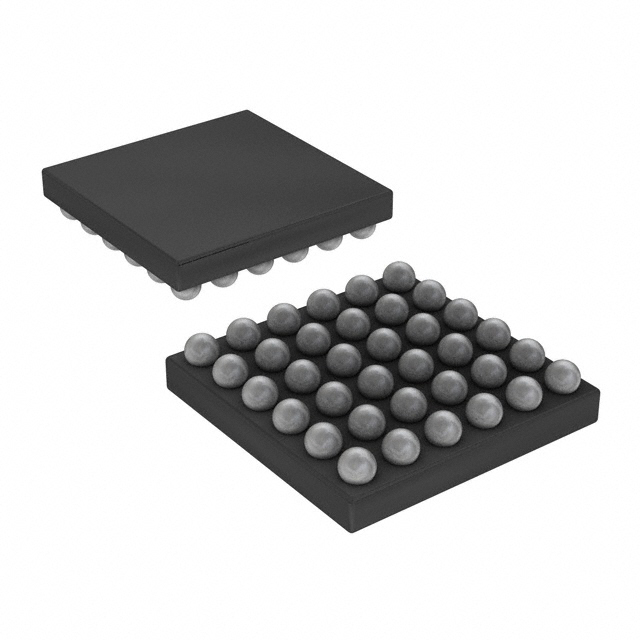

MAX4760EBX+TW
IC SWITCH DPDT X 4 3.5OHM 36UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4760EBX-TW is a quad dual-pole, double-throw (DPDT) analog switch. Each of the four circuits offers a low on-resistance of 3.5 Ohms maximum, with channel-to-channel matching of 200 mOhms. This 2:2 multiplexer/demultiplexer device operates from a single supply voltage of 1.8V to 5.5V and features a -3dB bandwidth of 150MHz. With a charge injection of 15pC and leakage current of 5nA maximum, it is suitable for applications requiring low signal degradation. The device exhibits -95dB crosstalk at 100kHz and has a channel capacitance of 25pF. Packaged in a 36-UCSP (3x3) format on tape and reel, the MAX4760EBX-TW is designed for surface mount applications. This component finds utility in various electronic systems, including consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 3.5Ohm |
| -3db Bandwidth | 150MHz |
| Supplier Device Package | 36-UCSP (3x3) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 15pC |
| Crosstalk | -95dB @ 100kHz |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 140ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Number of Circuits | 4 |
