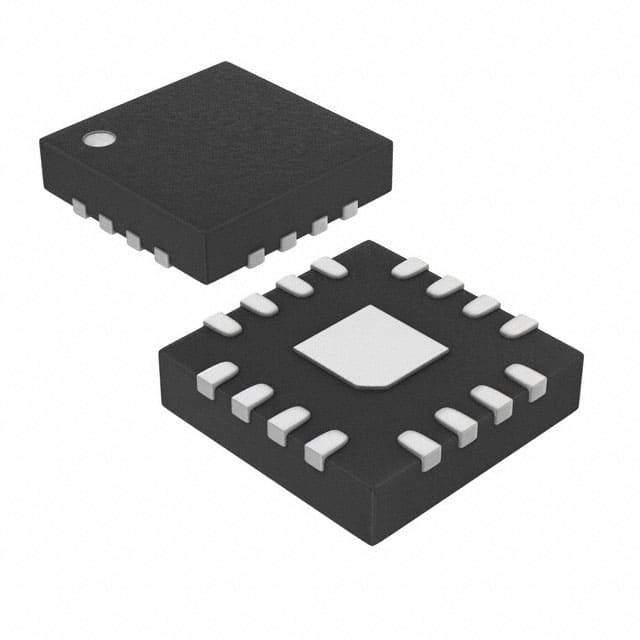

MAX4754ETE+T
IC SWITCH SPDTX4 850MOHM 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4754ETE-T is a quad, SPDT analog switch featuring low on-resistance of 850mOhm maximum. This 16-TQFN (4x4) package component offers a 1.8V to 5.5V single supply operation and a -40°C to 85°C operating temperature range. With a -3dB bandwidth of 10MHz, it is suitable for applications requiring signal routing and switching. The device exhibits 100mOhm channel-to-channel matching and low charge injection of 300pC. Crosstalk is rated at -90dB at 100kHz, and off-leakage current is a maximum of 4nA. This component finds application in consumer electronics, industrial automation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 850mOhm |
| -3db Bandwidth | 10MHz |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 300pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 140ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 180pF, 300pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Number of Circuits | 4 |
Request a Quote
