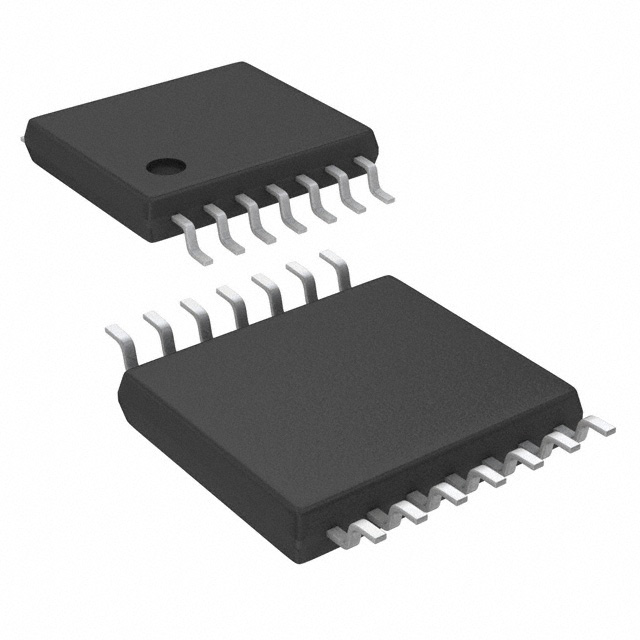

MAX4752EUD+T
IC SW SPST-NOX4 900MOHM 14TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 900mOhm 14-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 900mOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 14-TSSOP |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 21pC |
| Crosstalk | -80dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 30mOhm |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| Channel Capacitance (CS(off), CD(off)) | 31pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 2.5nA |
| Number of Circuits | 4 |
Request a Quote
