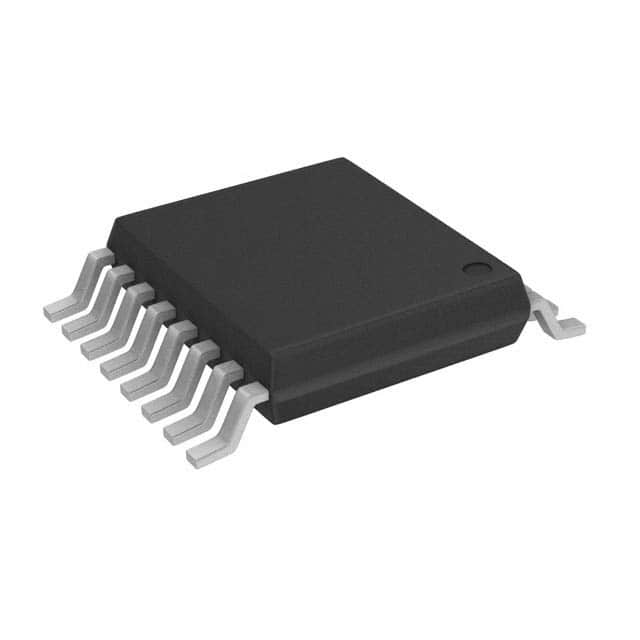

MAX4712EUE
IC SW SPST-NOX4 25OHM 16TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4712EUE is a quad, single-pole, single-throw (SPST), normally open analog switch. This device features a low on-resistance of 25 Ohms maximum, with channel-to-channel matching of 200 mOhms. Operating from single supply voltages between 2.7V and 11V, or dual supplies from ±2.7V to ±5.5V, it offers robust performance across a temperature range of -40°C to 85°C. The MAX4712EUE is packaged in a 16-TSSOP (0.173", 4.40mm Width) for surface mounting. Its low leakage current of 500pA (max) and charge injection of 25pC make it suitable for applications in test and measurement equipment, battery-powered systems, and audio signal routing. The switch time is rated at 125ns (on) and 80ns (off) maximum.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 25Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 5.5V |
| Charge Injection | 25pC |
| Crosstalk | -87dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 125ns, 80ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 4 |
