MAX4693EGE+T
IC SWITCH SPDT X 3 70OHM 16QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More

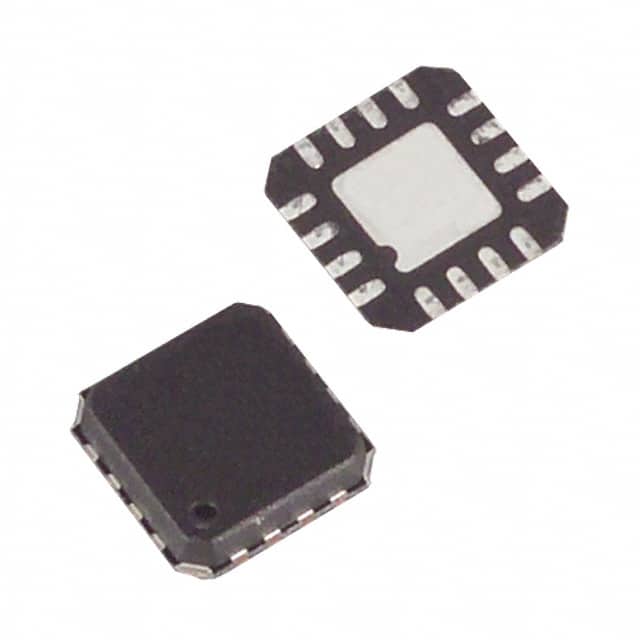

Analog Devices Inc./Maxim Integrated MAX4693EGE-T is a triple, single-pole double-throw (SPDT) analog switch. This component features low on-resistance of 70 Ohm maximum, with channel-to-channel matching of 2 Ohm. The device supports single supply voltages from 2.7V to 11V and dual supply voltages from ±2V to ±5.5V. It is supplied in a 16-QFN (4x4) package, surface mounted, and delivered on tape and reel. The MAX4693EGE-T is suitable for applications requiring efficient signal routing, including consumer electronics and industrial automation. Key performance metrics include a charge injection of 0.1pC and off-state leakage current of 1nA maximum. Switch times are rated at 300ns turn-on and 100ns turn-off maximum. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 70Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-QFN (4x4) |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2V ~ 5.5V |
| Charge Injection | 0.1pC |
| Crosstalk | -75dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 2Ohm |
| Switch Time (Ton, Toff) (Max) | 300ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 3 |
